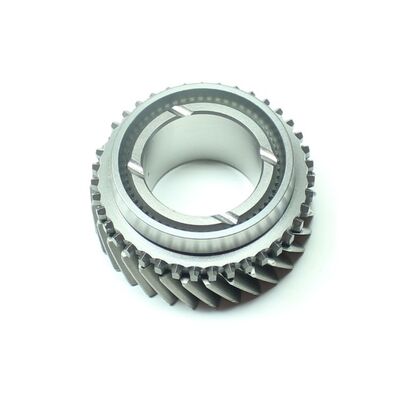

New Sunupmaster R151 AX15 3rd Transmission Gear with 31 Teeth SCM415 Material and HRC60-62 Heat Treatment
Trading Properties
•Minimum Order Quantity:
10 pieces
•Price:
US$ 282.00 / piece
•Standard Packaging:
Neutral carton, 10 pieces per carton, Carton size: 40x30x25 cm, 200 cartons per 20' GP container
•Delivery Time:
5-8 work days
•Payment Terms:
T/T,L/C,PayPal
•Supply Ability:
5,000 pieces per month
Basic Properties
•Part Number:
PN54492060
•OE Number:
OE54492060
•OEM Number:
OEN54492060
Have a Question? Ask Us
Specifications
| Model: | AX15-11 S-1191 | OE NO.: | 5252079 |
| Size: | 88mm*88mm*42mm | Material: | SCM415, SNCM220, SAE8620 |
| Heat treatment: | HRC60-62 | Min teeth: | 6T |
| Max teeth: | 1000T | Max size: | Outside Diameter 700mm |
| Min size: | Outside Diameter 20mm | Max modulus: | M6 |
| Min modulus: | M0.75 | Max helix angle: | 40 Degree |
| Min helix angle: | 0 Degree | Max hardness: | HRC62 |
| Gear precision grade: | JIS 1 |
Product Description
Product Specifications
New Sunupmaster R151 AX15 3rd Gear with 31 Teeth, manufactured from SCM415 material with HRC60-62 heat treatment for standard transmission applications (AX15-11 S-1191)
Production Equipment and Facilities
| Machine Name | Brand and Model No. | Quantity |
|---|---|---|
| CNC Lathe | Victor Taichung Machinery | 14 |
| Electron beam welder | N/A | 1 |
| Gear burnishing Machine | N/A | 2 |
| Hobbing machine | KASHIFUJI | 6 |
| Gear planer | N/A | 10 |
| Shaving machine | KANZAKI | 5 |
| Slotting machine | N/A | 1 |
| Machine center | Victor Taichung Machinery | 5 |
| Gear honing machine | N/A | 1 |
| Chamfering machine | N/A | 3 |
| Laser engraving machine | Han's Laser Technology | 1 |
| Engraved machine | N/A | 1 |
| Internal Grinding Machine | TOYOMATIC | 4 |
| Press | N/A | 4 |
| Broaching machine | N/A | 4 |
Test Equipment and Facilities
| Machine Name | Brand and Model No. | Quantity |
|---|---|---|
| Gear measuring instruments | OSAKA SEIMITSU KIKAI | 2 |
| 3D Coordinate measuring machine | BROWN & SHARP INSPECTOR | 1 |
| Roundness testing machine | MITUTOYO | 2 |
| Hardness tester | Metrology | 1 |
| Defect scope | Shanghai Shangcai Electromagnetic Equipment Co., Ltd. | 1 |
| Surface topology interferometer | MITUTOYO | 1 |
Product Images
Technical Specifications
| Parameter | Specification |
|---|---|
| Item Name | Made in Taiwan accessory for auto spare parts |
| Material | SCM415/20CRMNTI/SNCM220/SCM440 |
| Max size | Outside diameter 700mm |
| Min size | Outside diameter 20mm |
| Max modulus | M6 |
| Min modulus | M0.75 |
| Max number of teeth | 1000T |
| Min number of teeth | 6T |
| Max helix angle | 40 degree |
| Min helix angle | 0 degree |
| Max hardness | HRC62 |
| Min hardness | depend on customer |
| Customized gear | Yes |
| Gear precision grade | JIS 1 |
Certifications
