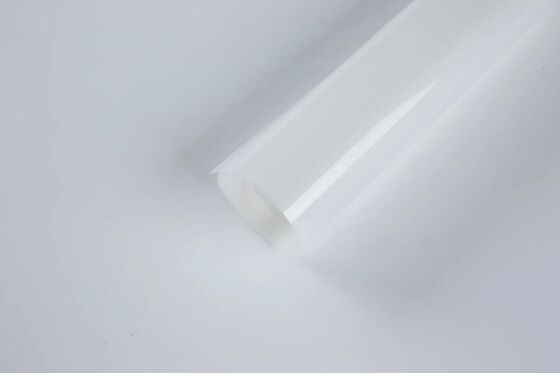

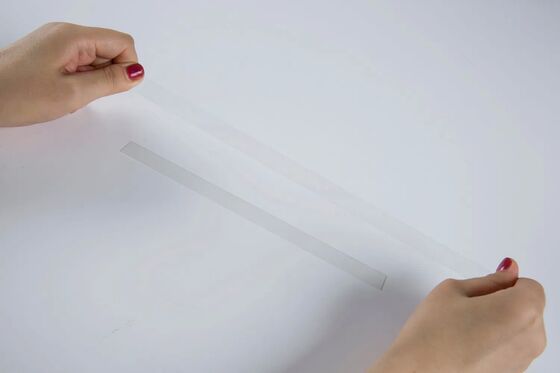

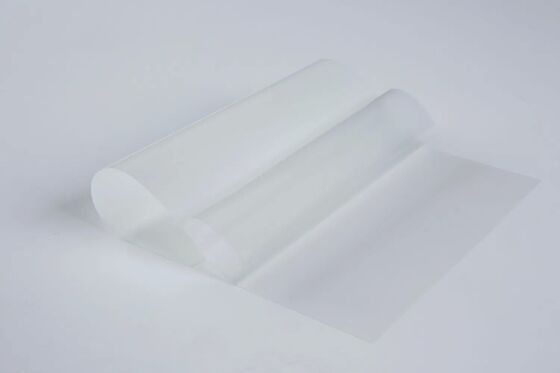

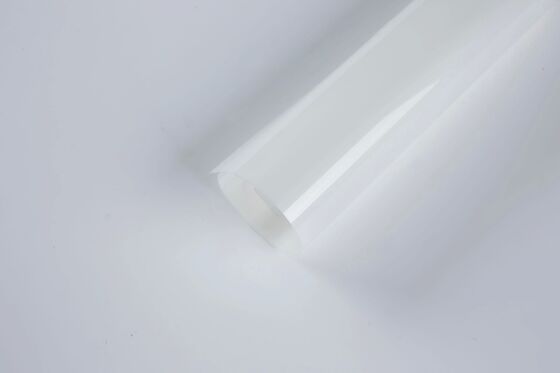

High Tensile Strength Self-Healing PPF Paint Protection Film with UV Rejection for Car Bras
Trading Properties
•Minimum Order Quantity:
10 pieces
•Price:
US$ 282.00 / piece
•Standard Packaging:
Neutral carton, 10 pieces per carton, Carton size: 40x30x25 cm, 200 cartons per 20' GP container
•Delivery Time:
5-8 work days
•Payment Terms:
T/T,L/C,PayPal
•Supply Ability:
5,000 pieces per month
Basic Properties
•Part Number:
PN54492388
•OE Number:
OE54492388
•OEM Number:
OEN54492388
Have a Question? Ask Us
Specifications
| Model NO.: | ELA | Roll Size: | 1.524m X 15m / 60" X 50' |
| Thickness PET: | 2mil | Thickness Topcoat: | 0.5mil |
| Thickness TPU: | 6mil | Thickness Adhesive: | 1.5mil |
| Thickness Liner: | 3.5mil | Tensile strength: | 352kg/cm² |
| Peel strength: | 75N/cm | Elongation at break: | >=110% |
| Maximum temperature: | 110ºC≥5min | Chemical Resistance: | Soap Mixture Passed |
| Visual Light Transmission: | 70% | Film Life: | 5-10 Years |
| Non-yellowing Period: | 5-10 Years |
Product Description
Super High Tensile TPU Paint Protection Film
Premium Automotive Paint Protection
Paint Protection Film (PPF), also known as Clear Bra, is a thermoplastic urethane self-healing film applied to vehicle surfaces to protect paint from stone chips, branch scratches, bug splatters, road debris, vandalism, corrosion, acidic contaminants, and minor abrasions.
BOP ELA Series PPF is a clear thermoplastic polyurethane (TPU) film with high tension, exceptional clarity, and specialized adhesive formulation, making it ideal for extremely cold weather conditions.
Product Structure
Layer Thickness
- PET Protective Cap Sheet: 2mil
- Topcoat: 0.5mil
- TPU Base Film: 6mil
- Adhesive: 1.5mil
- Liner: 3.5mil
Roll Size: 1.524m x 15m / 60" x 50'. Custom sizes available upon request.
Technical Specifications
| Property | Value |
|---|---|
| Tensile Strength | 352kg/cm² |
| Peel Strength | 75N/cm |
| Elongation at Break | ≥110% |
| Maximum Temperature | 110ºC ≥5min |
| Chemical Resistance | Soap mixture Passed |
| Anti-fouling | QUV1000H M&G Strongest Marker Pen (Pass) |
| Soak Test in Acid and Alkali | Oxalate 72H (Pass) |
| Impact Resistance | Pass |
| Visual Light Transmission | 70% |
Key Features
- High Gloss Finish
- Anti-contamination Properties
- Superior Collision Resistance
- Long-lasting High Gloss
- Heat-activated Self-healing
- Non-yellowing Formula
- Swirl Resistance
- Anti-Graffiti Protection
- Alkali Resistance
- High Temperature Resistance
- Anti-Oxidation Properties
- Acid Rain Resistance
- UV Rejection
- Anti-scratch Surface
- Wax-free Application
Warranty Coverage
Warranty Period
8 Years from purchase date
Coverage Includes
Yellowing, Staining, Cracking, Blistering, Delaminating
Film Life (Applied)
5-10 years
Non-yellowing Period
5-10 years
Safe Removal Years
5-10 years
Brand Showcase
Manufacturer Profile
Zhejiang Shichuang Optics Film Manufacturing Co Ltd, established in 2004, is a professional manufacturer specializing in Paint Protection Film, Automotive Window Tint Films, Architectural Window Tint Films, Furniture Protection Films, White Board Writing Films, and related products.
